Komman Vox Orix Basic Brushless Car Wash Machine

Komman Vox Orix Basic Brushless Car Wash Machine

TECHNICAL SPESIFICATION

TECHNICAL SPECIFICATIONS
Platform Dimensions (LxWxH)7700 x 4300 x 3200 (mm)
Washing Capacity (LxWxH)5900 x 2400 x 2200 (mm)
Total Power RequirementMin. 40 kW - 380 V - 50/60 Hz
Drying Fans Motor Power5.5 kW x 6 Unit
Water Pump Capacity150 Bar - 150 L/min
Water Pump Motor Power30 kW
Water Pressure100 - 140 Bar
Water Consumption100 - 200 L
Total Washing Time6 - 10 Minutes
Electricity Consumption4 - 8 kWh
Rail Length7700 mm
Width / Length / Rotation MovementsBy Servo Motor
Vehicle Detection SystemUltrasonic Sensors
Chemical Mixing SystemAutomatic Proportioning with Dosing Pumps
360° WashingStainless Steel Arm with 17 High Pressure Nozzles
Collision Avoidance SystemAvailable
360° Rotating RinsingAvailable
PLC Touch ScreenAvailable
Bottom Washing SystemAvailable
Mobile Internal CarriageAvailable
Smart FoamAvailable
Magic FoamAvailable
LED LightingAvailable
Fast WaxAvailable
High Pressure RinsingAvailable
Side Drying FansAvailable
Top Drying FansAvailable
Italian Brand HAWK PumpAvailable
Pepperl+Fuchs Ultrasonic SensorsAvailable
Servo MotorsAvailable
Servo DrivesAvailable
Talking SpeakerAvailable
Warning SirenAvailable
Leakage ProtectionAvailable
QR Code Payment SystemAvailable
Custom Software Management SystemAvailable
Authorization SettingAvailable
Vehicle Wash Count StatisticsAvailable
Automatic Standby FunctionAvailable
One-Touch ResetAvailable
Remote ControlAvailable
Editable Wash ProgramsAvailable
High Pressure NozzlesAvailable
Moving NozzlesAvailable
Clog-Prevention FiltersAvailable
Multi-Language SupportAvailable

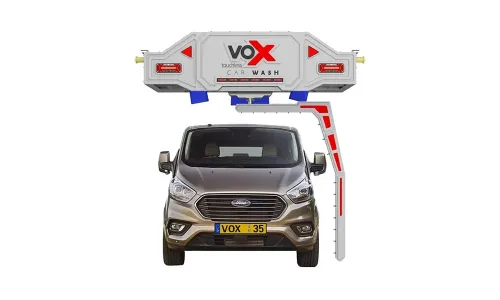

VOX Orix Basic Brushless Car Wash Machine

It is an automatic, basic package that successfully performs touchless car washing.

This package does not include side dryers.

On the machine, the high-pressure water arm is fixed on the central axis and operates with a circular motion.

The standard features offered in this package are explained in detail in the “Features” menu.

Thanks to the Comparison menu on our website, you can select multiple models, view all packages side by side, and easily compare them.

Robustness, durability, and longevity are offered as standard across all versions.

All our models hold all types of international certifications, primarily the CE certificate.

You can access our certificates through this link here.


VOX Orix Basic Brushless Car Wash Machine

It is an advanced technology solution developed for businesses seeking speed, quality, and efficiency in car washing processes. This system flawlessly cleans the entire surface of the vehicle in just a few minutes, fully automating the washing, foaming, rinsing, drying, and polishing stages. In this way, it saves time for both businesses and customers.

The machine provides effective cleaning even in the most hard-to-reach areas of the vehicle thanks to its high-pressure spraying and specially formulated foaming system. Its touchless operating principle eliminates the risk of damaging the vehicle’s paint or coating while ensuring a safe wash. Advanced sensors automatically detect the vehicle’s dimensions and optimize the washing process accordingly.

The powerful fan systems used in the drying stage prevent water droplets from remaining on the vehicle, delivering a spotless and shiny finish.

With its energy-efficient and water-saving design, this machine offers an economical solution that significantly reduces operating costs in the medium term. Additionally, its user-friendly control panel makes it easy to operate, allowing maximum efficiency with minimal staff.

Thanks to its advanced payment system, you can choose to accept payments by credit card or provide a quick and convenient payment option via QR code.

Whether it is a large car wash facility or a newly opening business, this fully automatic robotic car wash machine represents the washing technology best suited to the needs of the modern era. With its durable construction and low maintenance requirements, it can be used safely for many years.
