TECHNICAL SPESIFICATION
| TECHNICAL SPECIFICATIONS | |

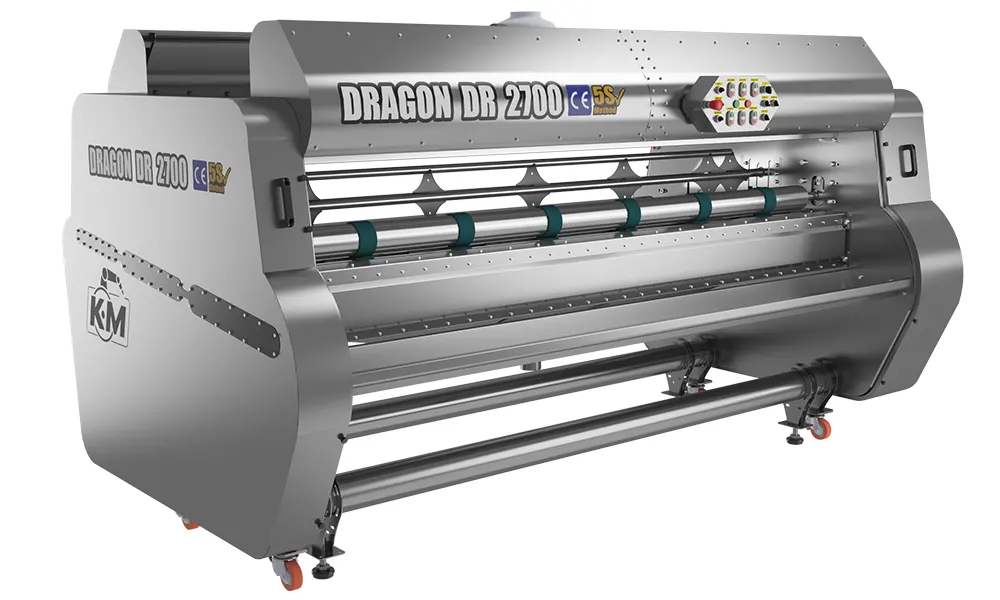

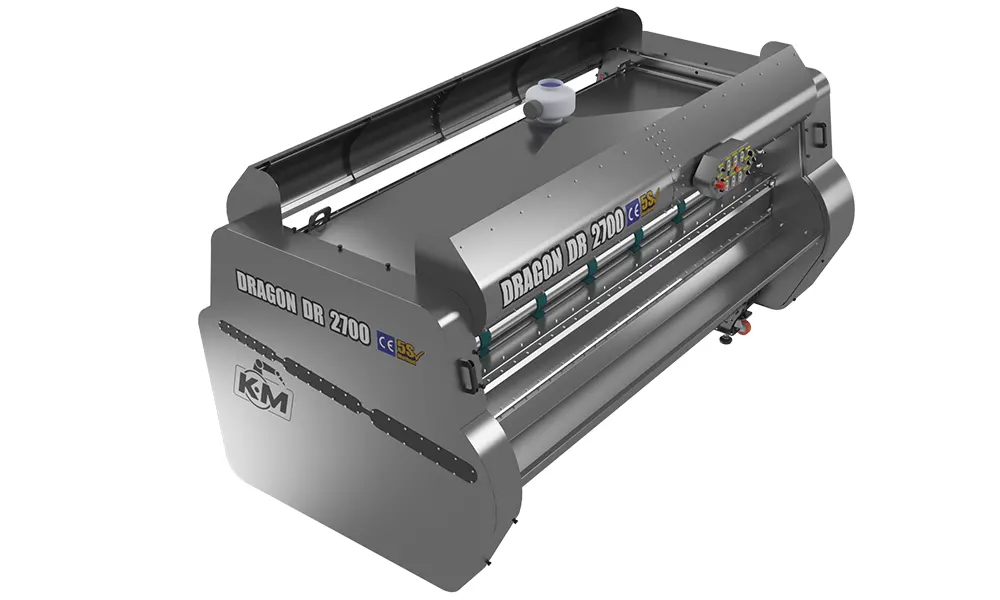

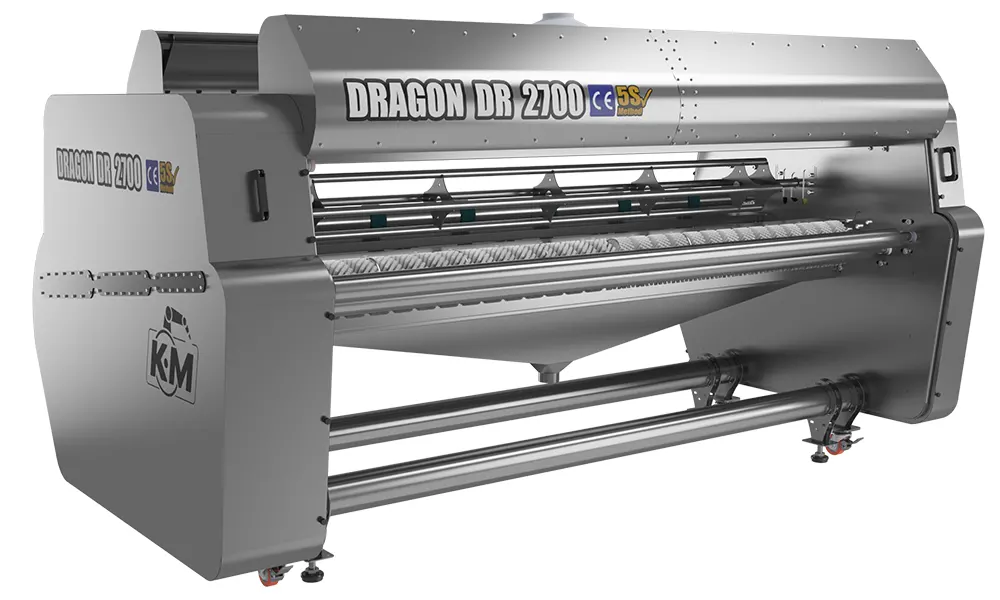

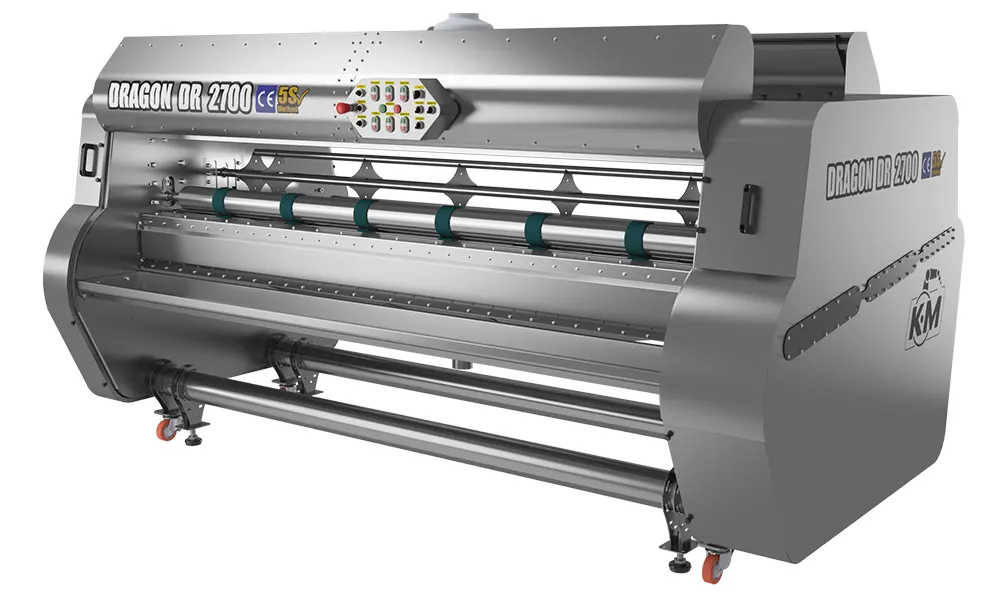

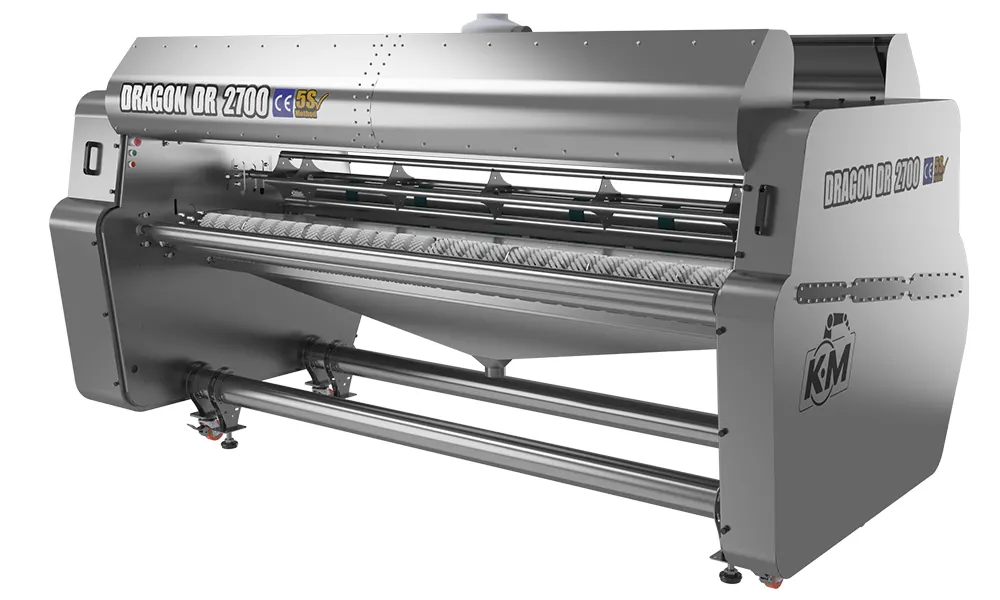

| Machine Description | The DR 2700 is a compact model with dual-stage metal beaters that allows you to beat carpets at maximum efficiency. |
| Weight | 1100 Kg |
| Dust Suction System | Thanks to the dust collection system, all dust, dirt, lint, hair, and similar foreign objects are collected by the bunker system located under the machine. Additionally, the machine can be easily cleaned thanks to the easy-open covers in the bunker system. |
| Dust Extraction System | The carpet, placed upside down on the machine, is completely cleared of dust, lint, hair, and similar foreign substances by its two powerful beaters. |
| Usage Area | Carpet Beating / De-dusting |
| Top Dust Extraction System | The machine features a top dust suction system that collects airborne dust using an industrial circular duct fan. |
| Bottom Cleaning Brush | Thanks to the bottom cleaning brush located at the rear of the Dragon carpet de-dusting machine, it prevents dust accumulation on both the front and back surfaces of the carpet by eliminating the possibility of dust remaining from previous carpets. |
| Control System | The control panel located on our carpet de-dusting machine allows for easy and comfortable operation. It offers safe usage through emergency stop buttons located at the front and rear of the machine. |
| Conveyor Belt System | Thanks to the adjustable belt speed on the machine, the carpet can exit the machine slower or faster depending on the level of dirt. This ensures that the carpet is fully cleared of dust. |
| Machine Door | Thanks to the machine's cover design, the control panel (all electrical components) and motors are protected from dust, dirt, and moisture. Additionally, it provides a safer working environment. |
| Vibrating / Shaking System | Multi-system with dual beaters capable of top and bottom beating. |
| Motor Type | Electric |
| Beating Capacity m² / hour | 240 m² - 420 m² |
| Motor Power | 3.7 kW |
| Number of Motors | 3 Unit |
| Voltage | 380 V |
| Width x Length x Height (mm) | 1800x3525x1900 mm |
The DR XL 4200 is a compact model with a double-stage metal beater that you can use at maximum efficiency. You can adjust the belt speed according to the dirtiness of the carpet. With the metal beater system, it beats the carpet without damaging it.
DUSTING SYSTEM
The carpet, which is placed upside down on the machine, completely purifies the carpet from dust, lint, hair and similar foreign materials with its two powerful beaters.
DUST COLLECTION SYSTEM
Thanks to the dust collection system, all dust, dirt, lint, hair and similar foreign objects are collected with the bunker system under the machine. Moreover; Thanks to the easy-open covers in the bunker system, the cleaning of the machine can be done easily.
TOP DUSTING SYSTEM
Thanks to the industrial circular duct fan on the machine, there is an upper dust extraction system that collects the dust flying into the air.
BAND SYSTEM
Thanks to the belt speed that can be adjusted in the machine, the carpet can come out of the machine slower or faster depending on the pollution situation. This ensures that the carpet is free of dust.

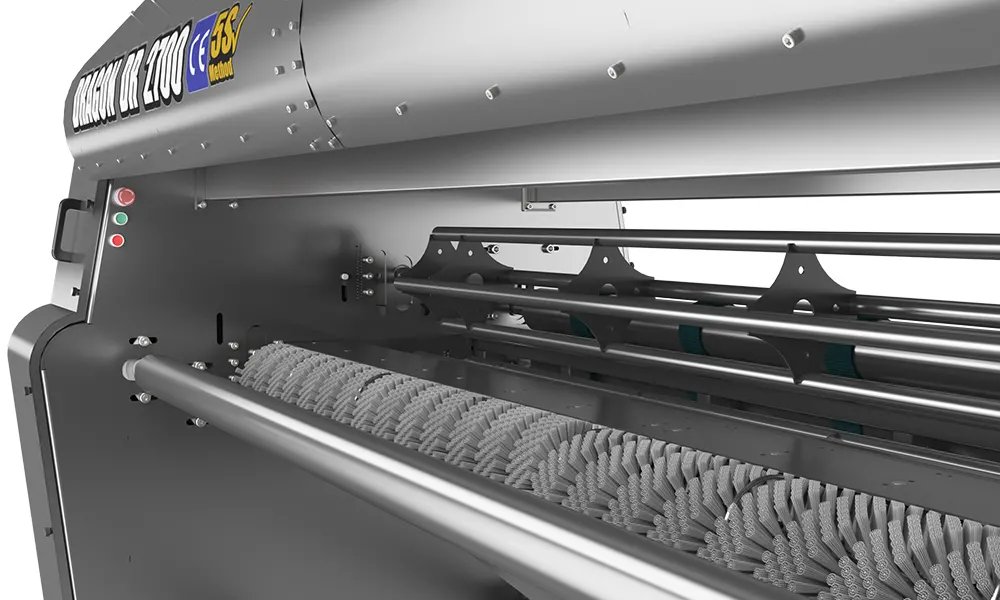

BOTTOM CLEANING BRUSH
Thanks to the lower cleaning brush on the back of the Dragon carpet dusting machine, it eliminates the possibility of dust remaining from the previous carpet or from it, and prevents dust accumulation on the front and back surfaces of the carpet.
CONTROL SYSTEM
Thanks to the control panel on our carpet dusting machine, the machine can be operated easily and comfortably. It provides a safe use through the emergency stop buttons located at the front and back of the machine.
COVER DESIGN
Thanks to the cover design of the machine, the machine panel (all electrical parts) and motors are protected from dust, dirt and moisture. It also provides a safer working environment.
Technicial Specifications
Dusting System: Multi system with double beater that can dust from above and below
Beating Capacity( m²/hour): 240 m²- 420 m²
Machine Model: Carpet Beater DR XL 4200
Linear Carpet Pressure System
Engine Type: Electric
Number of Engines: 3 Pieces
Engine Power: 3.7 Kw
Working Type: Industry
Usage: Carpet Whipping / Dusting
WidthxLengthxHeight: 1800x3525x1900 mm
Weight:1100 Kg
