TECHNICAL SPESIFICATION
| TECHNICAL SPECIFICATIONS | |
| Total Number of Brushes | 11 |
| Number of Roller Brushes | 3 |
| Number of Disc Brushes | 8 |
| Disc Brush Diameter (mm) | 420 |
| Brush Speed | 200 rpm/min |
| Disc Brush Motor Power | 1,1 kW |
| Disc Brush Motor Speed | 1400 rpm/min |
| Carpet Rolling Unit | Available |
| Pre-Soaking System | Available |
| Endless Conveyor Belt | Available |
| Brush Grid System | Available |
| Bottom Cleaning System | Available |
| Adjustable Belt Tensioning System | Available |
| Linear Actuator Pressure System | Available |
| Rinsing System | Available |
| Automatic Valve System | Available |
| Scraper System | Available |
| Spring-Loaded Pressure System | Available |
| Daily Capacity (8 Hours) | 2000-3500 M² |
| Total Power | 18 kW |
| Belt Width (mm) | 3500 |
| Drive System | PLC Control |
| Speed Control | Available |
| AC Drive (Alternating Current Drive) | Available |
| Voltage | 380-50 / V-Hz |
| Safety Switches | Available |
| Width x Length x Height (mm) | 2400 x 4280 x 1900 |
| Automatic Washing Module | Available |
| Manual Washing Module | Available |
| Touchscreen | Available |
| Language Options | Available |
| Automatic Software Options for Every Carpet Type | Available |
| Automatic Stop System in Case of Jamming | Available |
| Material Quality | AISI304 |
| CE Certificate | Available |

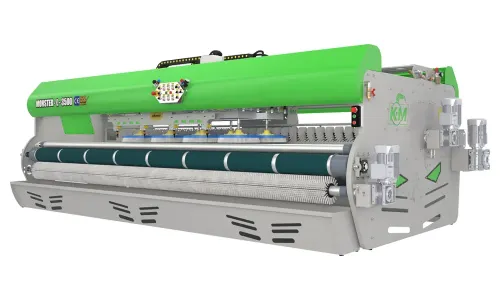

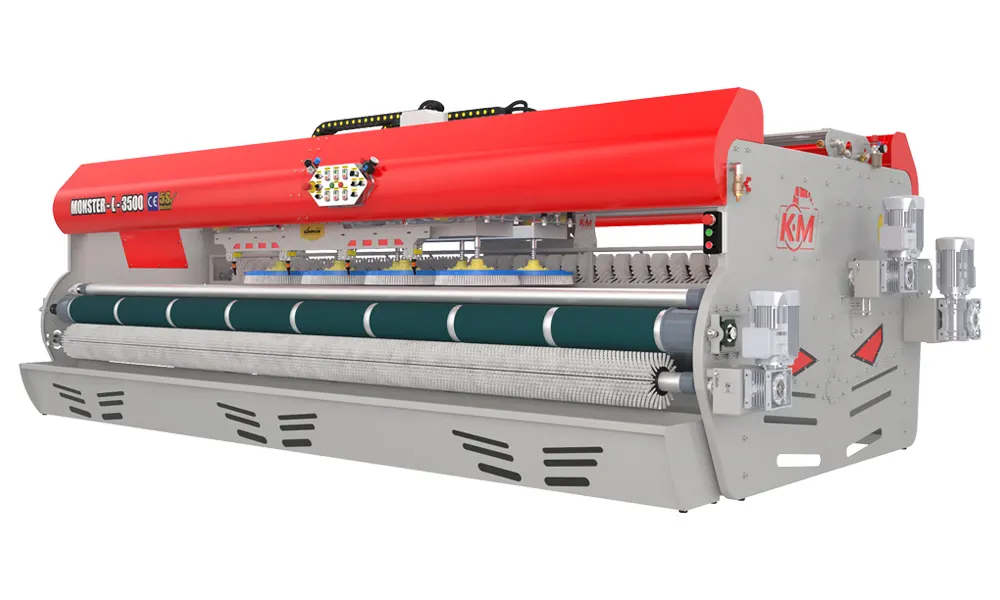

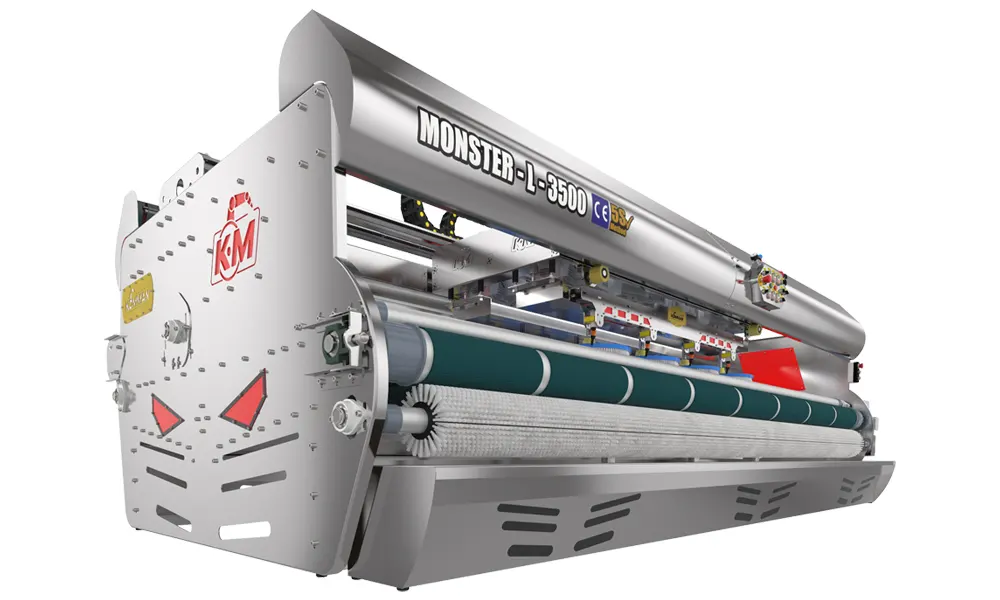

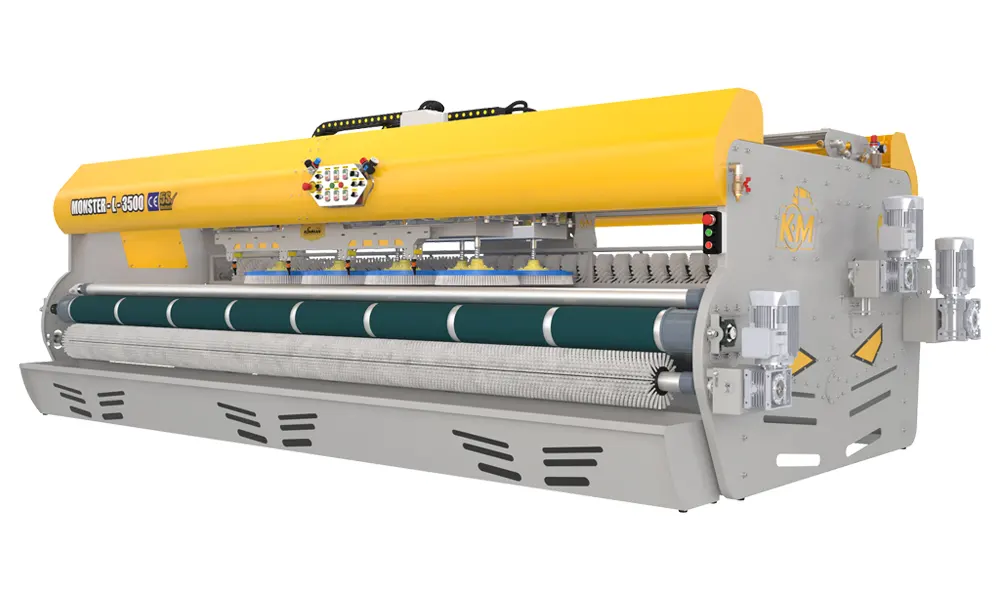

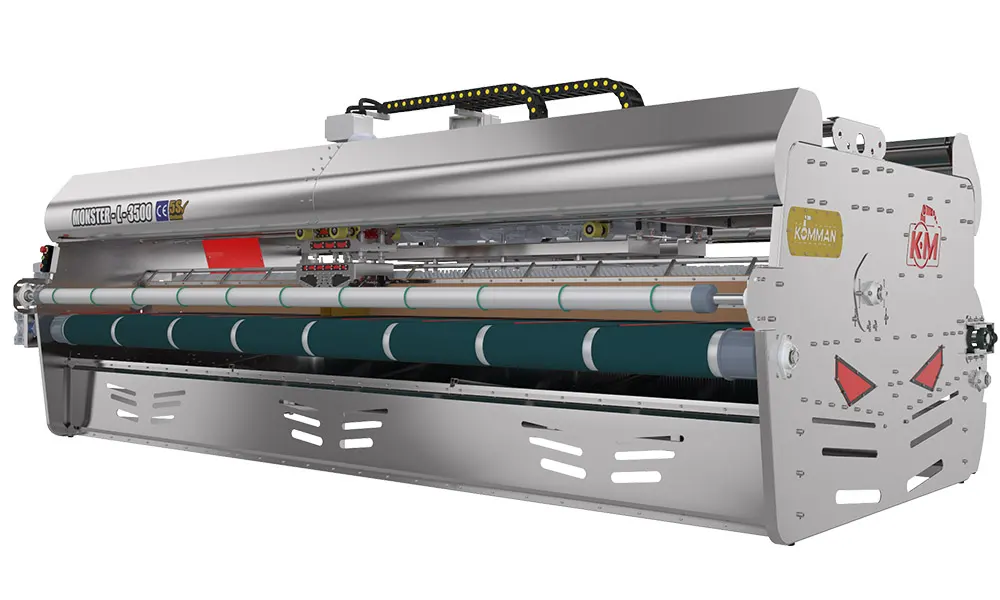

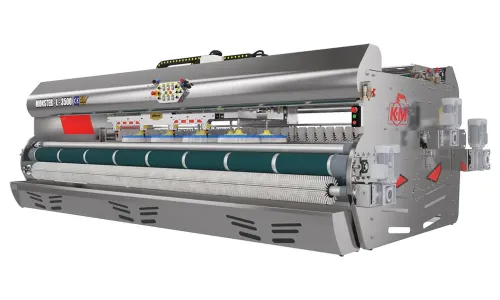

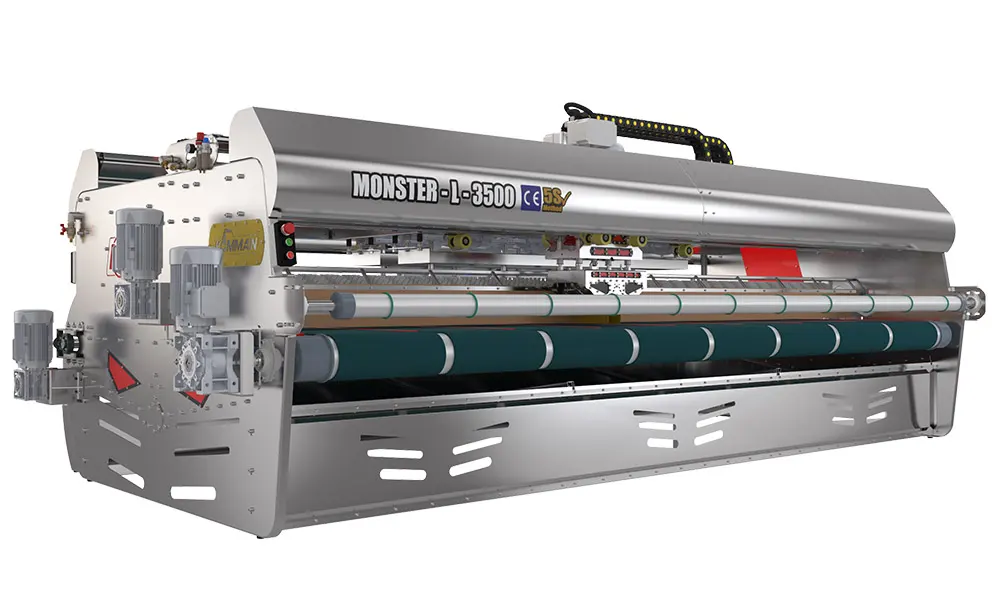

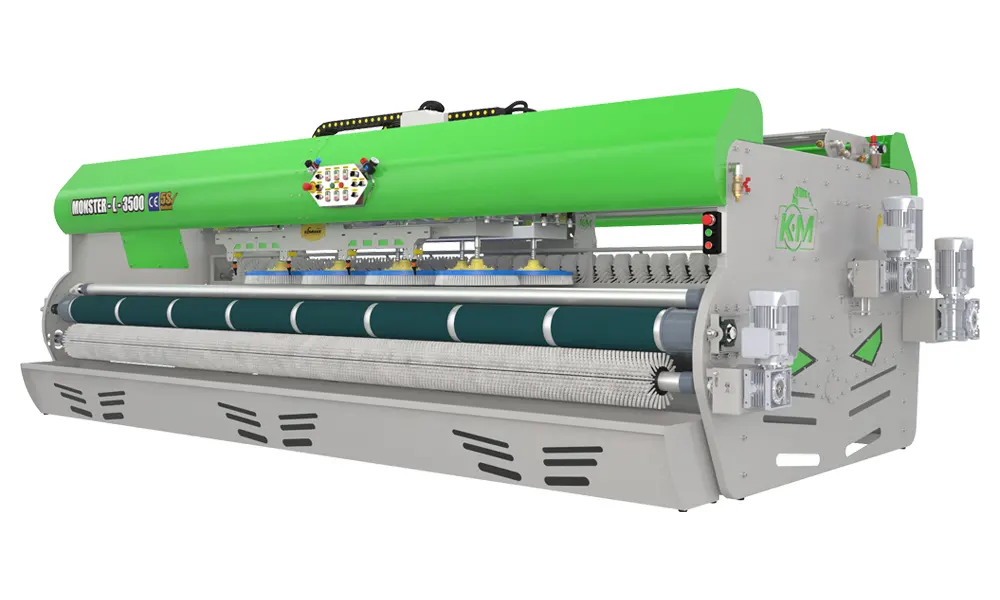

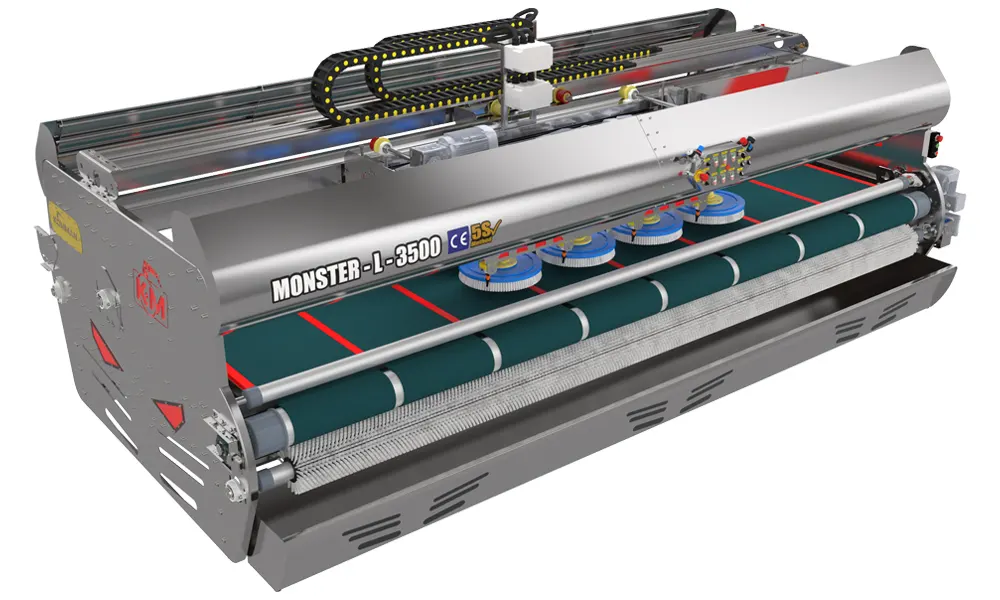

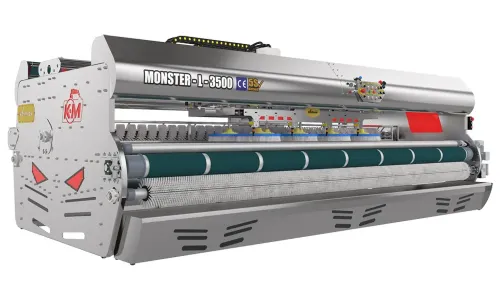

MONSTER L 3500 Technical Specifications:
• Total of 10 Brushed Compacts
It offers a unique carpet washing experience with its advanced features.
Thanks to the front and rear brush systems that can be independently commanded, it washes according to carpet types.

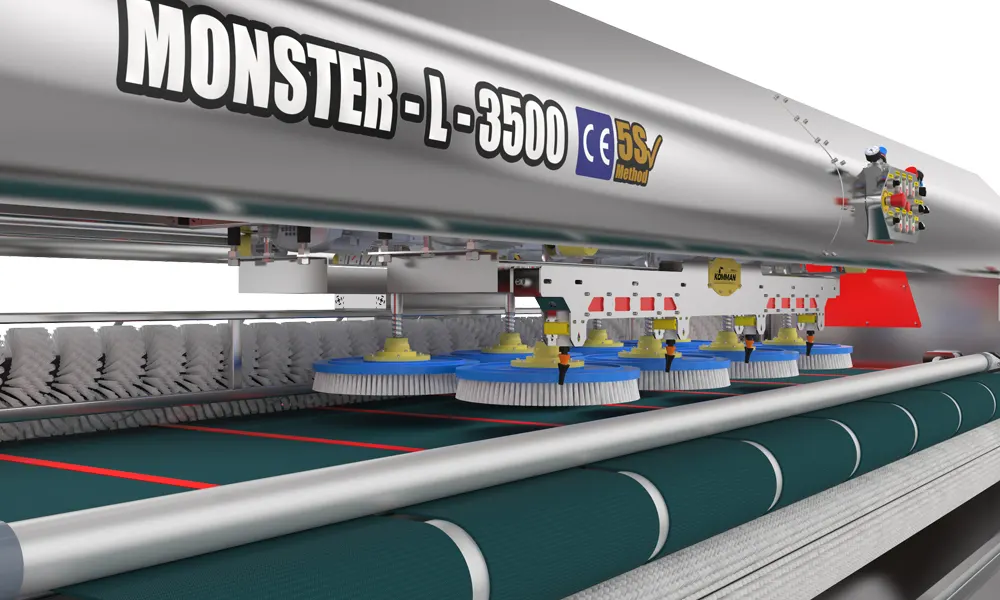

• 4 pre-wash disc type brushing system for sensitive carpets
• 4 heavy wash disc type brushing system for classical and heavily soiled carpets.
• Large diameter and 5 mm thick high strength conveyor drums
• Large Diameter and high strength linear car shears
• Linear carpet pressure system
• Spring pressure system for a homogeneous pressure on the carpet.
• Helical middle brush system for feather embossing
• Squeegee and rinsing system
• Moving rinse water system
• Bottom roller brushing system that cleans under the carpet
• Carpet wrapping unit
• Possibility to wash all kinds of carpets
• 1st quality compact endless conveyor belt. ( Chemical resistant )
• Socket, adjustable belt tension and segmented belt system.
• Versatile, easy-to-use automation directory
• Pre-wetting system
• Optimum operation of the machine with horizontal movement control according to the width of the carpet.
• Possibility to control the speed of all units in the system thanks to the AC drives in the automation infrastructure
• Grid system that prevents carpet fringes from wrapping around the middle and lower washing brushes on fringed carpets.
• The machines have been designed compactly with the mass production model and manufacturing and workmanship errors have been reduced to the level of the automotive industry.
• Minimum failure level
Manufacturing according to the principle of working in the most severe conditions.
• Maximum output level with low energy and water consumption.
• Optionally, it can be produced as chrome, galvanized or epoxy oven painted.
• 3,50 Belt width - Compact endless conveyor belt
• Total Number of Brushes: 10 pieces
• Voltage: 380-50 / V-Hz
• Brush Motor Power: 1.1 KW
• Brushing units: 8 Disc Brushes, 2 Roller Brushes
• Total Power: 18 KW
• Disc Brushes Motor Speed: 1400 rpm
• Brush Cycle: 200 rpm
• Brush Diameter: 420 mm
• 1000 square meters of carpet cleaning in 8 hours
• A carpet of 6 square meters can be washed in an average of 3 minutes.
• Carpet washing speed 1m/min per minute
• Electricity Consumption in 1 Hour: 11 KWh
• LxWxH: 2400 x 4280 x 1900 mm
