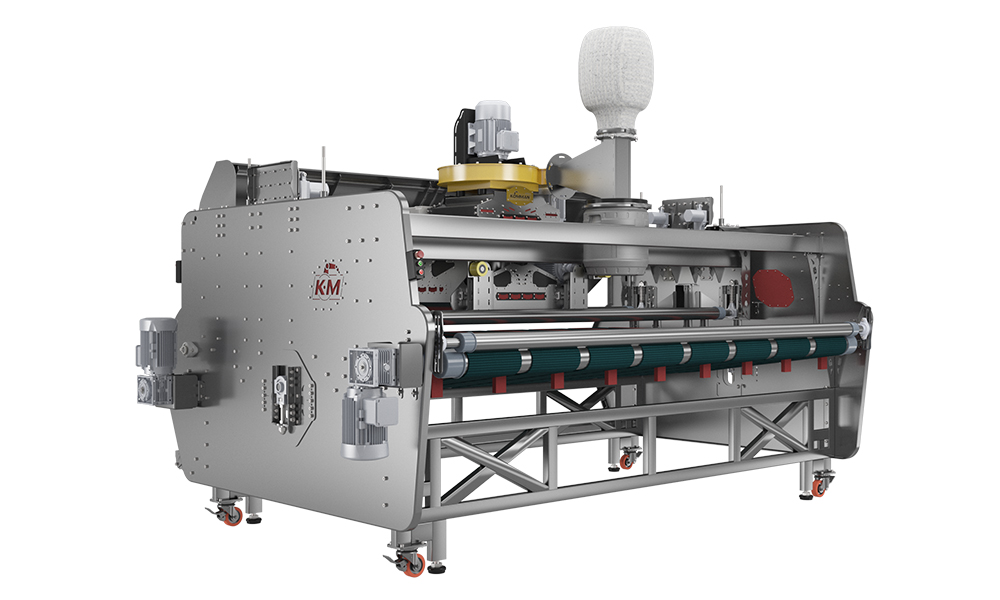

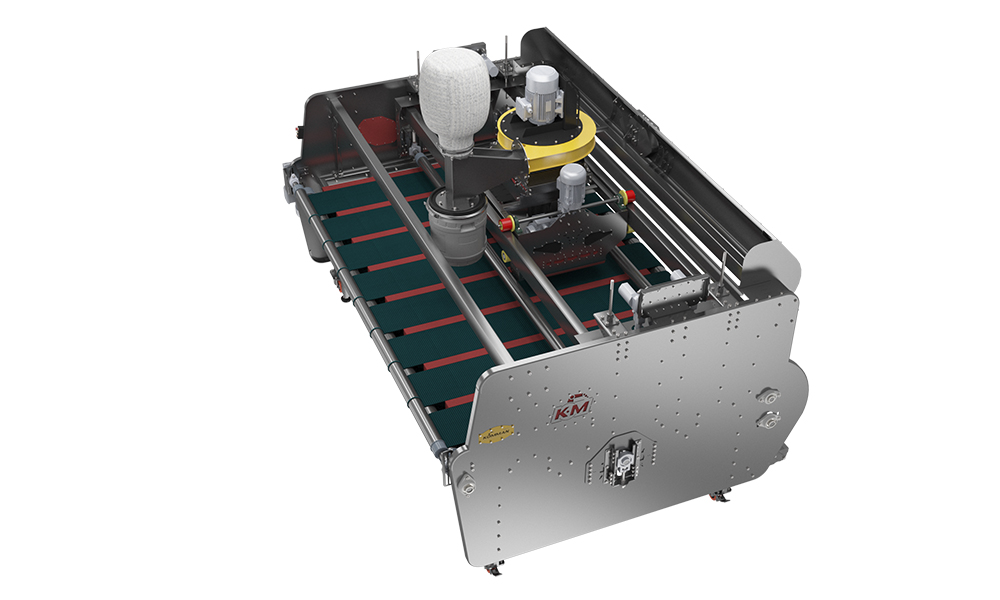

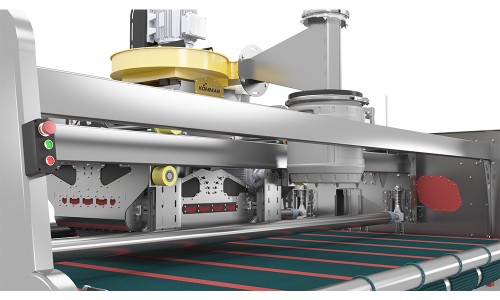

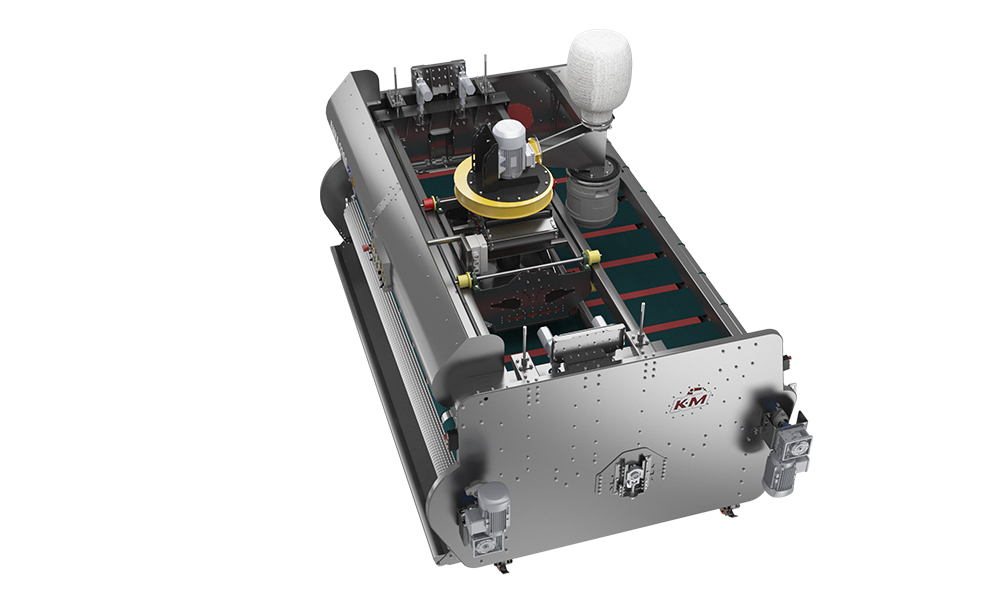

Carpet Packaging & Sweeping Machine ANKA 2700

BOTTOM CLEANING SYSTEM

The bottom cleaning roller brush on the front of the machine performs the task of collecting lint, fluff and similar materials under the carpet.

INDUSTRIAL SWEEPING SYSTEM

2 pcs of specially produced helical roller brushes in the sweeping system collect the bristle, fluff, and foreign objects on the carpet in the chamber integrated into the system.It collects pile, hair and similar things in the dust bag with the help of vacuuming unit.Helical roller brushes, due to their structure, collect hair and pile accumulations on the carpet, while on the other hand, they provide fluffing of the carpet by combing the carpet in two different directions.

POWERFULL VACUUM UNIT

The powerful vacuum unit with a 2.2 kW (3 HP) engine and 1400 Pa vacuum power, with its 6200 m3/h vacuum capacity, perfectly cleans all particles such as hair, fluff, dust, lint and similar particles on the carpet. At the same time, with the strong vacuum effect it creates on the carpet, it fluffs the carpets very well and maximizes the service quality.

MILLIMETRIC PRESSURE SYSTEM

Thanks to the millimetric pressure system of the machine, 100% taction is ensured even on the thinnest and thickest carpets, and the cleaning of the carpet is maximized. Thanks to the two front and rear spring pressure rollers working as an integral part of this system, there is no risk of carpet snagging in any scenario.

FINAL CONTROL AREA

The machine has a wide field of view so that the last control can be easily done just before rolling the carpet.

CONVEYOR BELT SYSTEM

A one-piece belt system is used in order to ensure that the carpet moves smoothly. A special belt tensioning system has been designed in order to eliminate the problems of the conveyor belt system such as slipping, displacement and non-advancement.

BACK ROLLING SYSTEM

After the final inspection of the carpet, the carpets are rolled into rolls and ready for packaging without the need for manpower, by means of the back rolling system.

Features:

Provides definite improvement in service quality

Bottom cleaning roller brush system

Heavy duty adjustable Vargel type carpet pressure system (The most successful linear system of German lathe type with stable pressure.)

Band forward and backward running, fast and slow running feature,

Industrial sweeping and fluffing system,

High vacuum power,

Versatile simple usable automation system

Precise PLC control

Carpet wrapping feature with collector roller support

Total Power: 7.1 Kw

Width x Length x Height: 2575 x 3280 x 1900 mm

Weight: 900 kg
