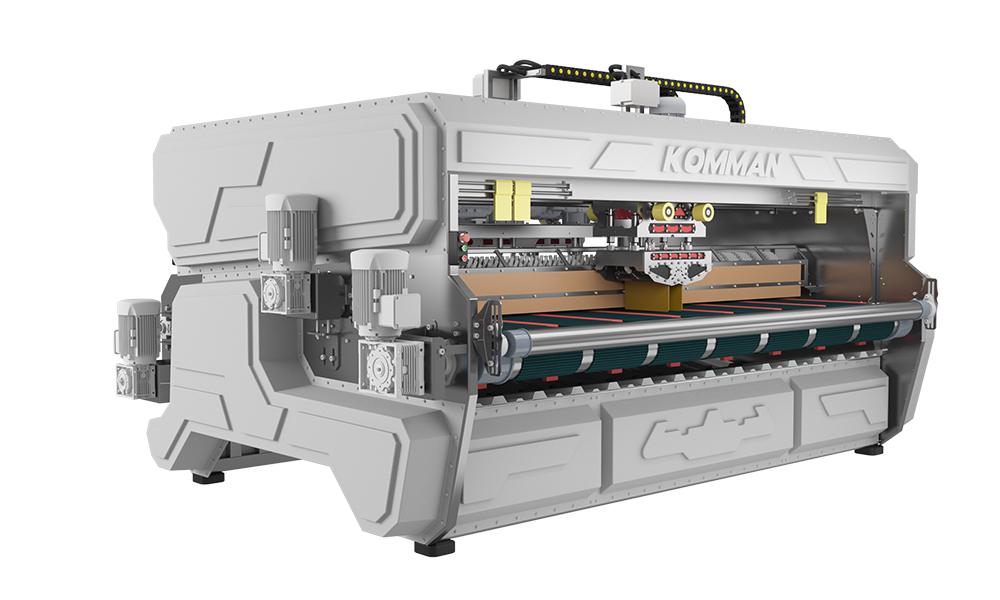

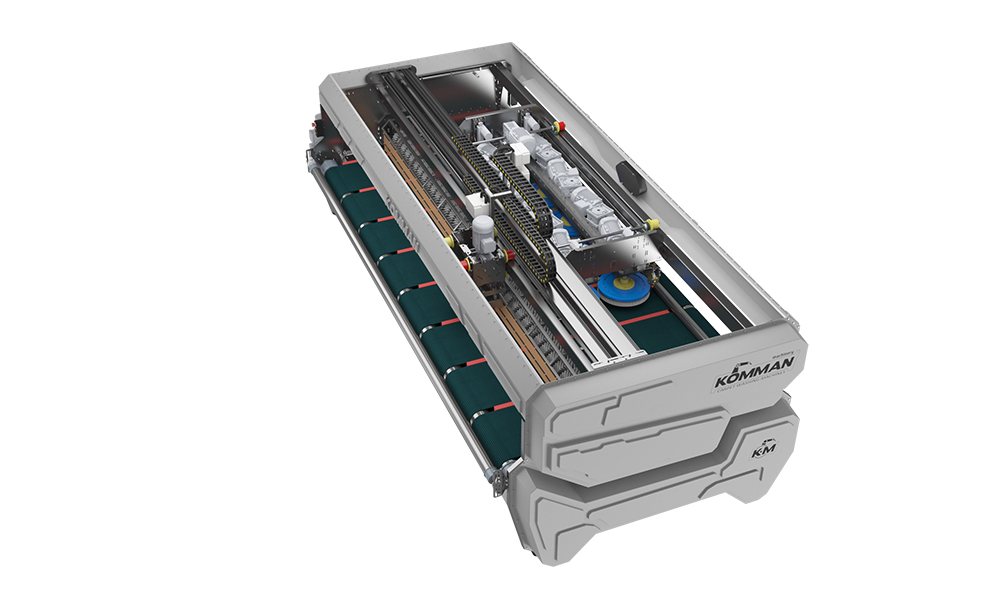

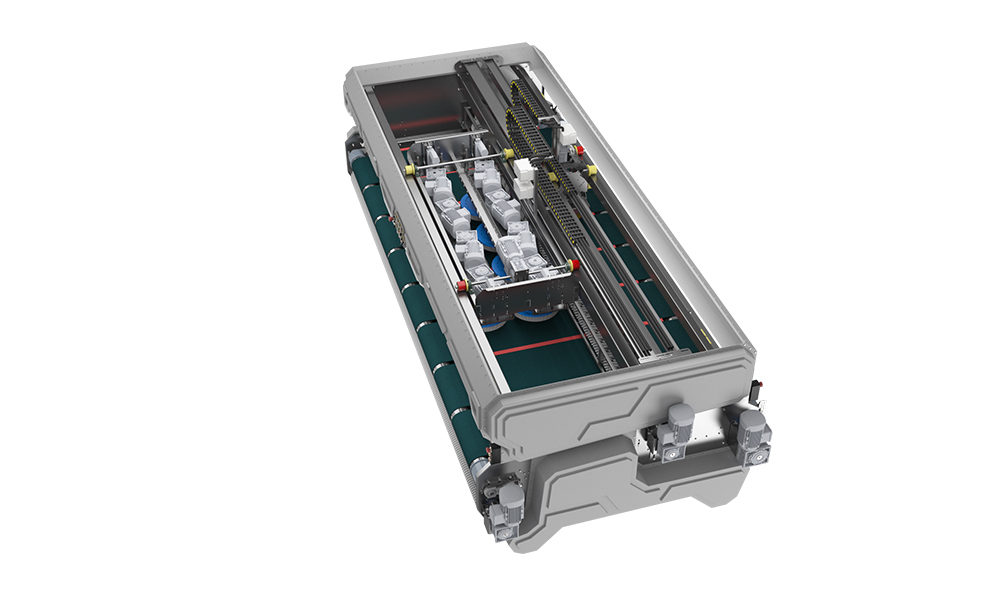

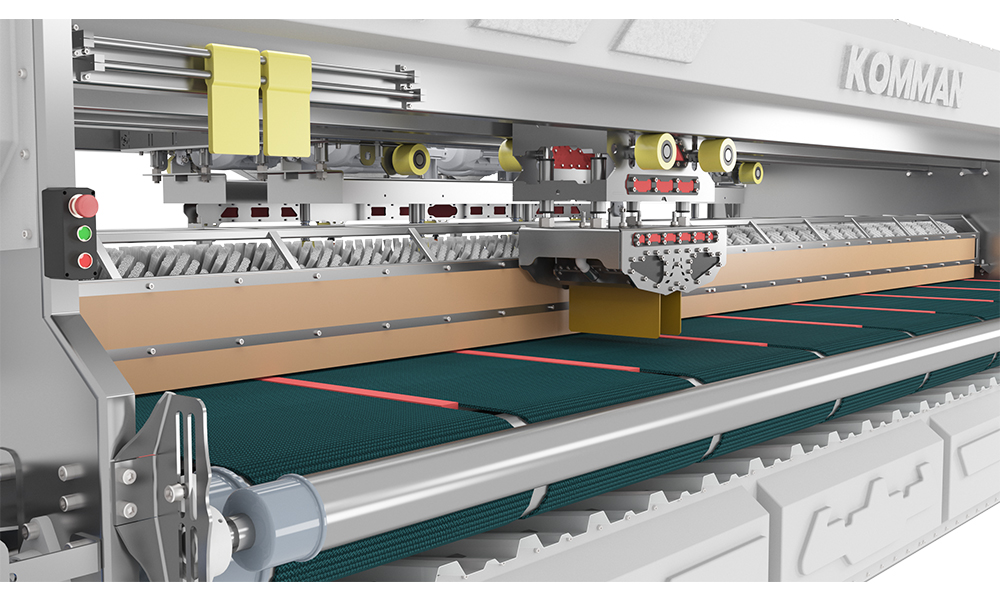

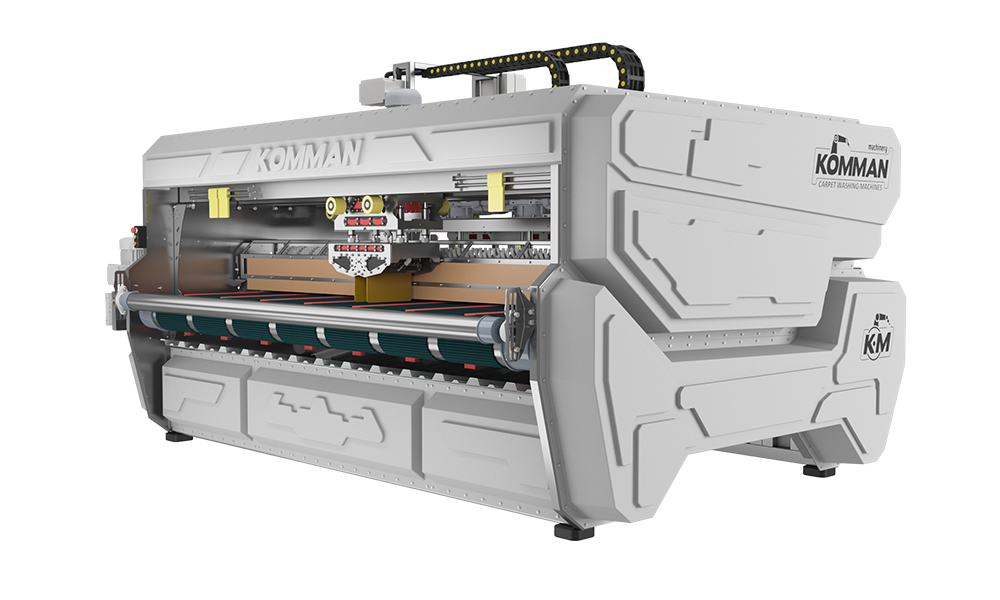

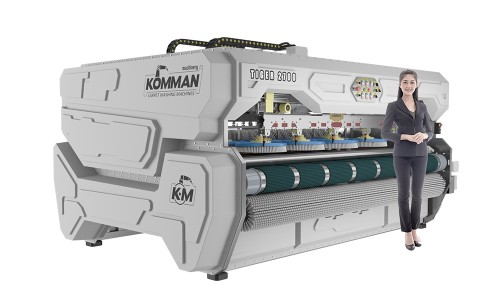

Full Automatic Carpet/Rug Washing Machine Tiger Forceline 2700

TIGER FORCELINE 2700 Technical Specifications:

• Total of 10 Brushed Compacts

It offers a unique carpet washing experience with its advanced features.

Thanks to the front and rear brush systems that can be independently commanded, it washes according to carpet types.

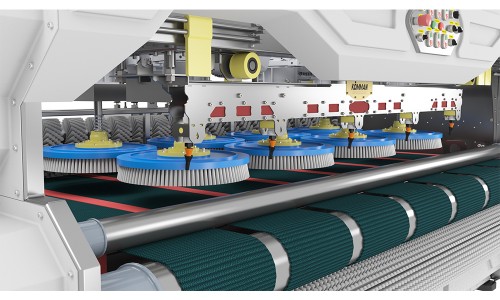

• 4 pre-wash disc type brushing system for sensitive carpets

• 4 heavy wash disc type brushing system for classical and heavily soiled carpets.

• Large diameter and 5 mm thick high strength conveyor drums

• Large Diameter and high strength linear car shears

• Linear carpet pressure system

• Spring pressure system for a homogeneous pressure on the carpet.

• Helical middle brush system for feather embossing

• Squeegee and rinsing system

• Moving rinse water system

• Bottom roller brushing system that cleans under the carpet

• Carpet wrapping unit

• Possibility to wash all kinds of carpets

• 1st quality compact endless conveyor belt. ( Chemical resistant )

• Socket, adjustable belt tension and segmented belt system.

• Versatile, easy-to-use automation directory

• Pre-wetting system

• Optimum operation of the machine with horizontal movement control according to the width of the carpet.

• Possibility to control the speed of all units in the system thanks to the AC drives in the automation infrastructure

• Grid system that prevents carpet fringes from wrapping around the middle and lower washing brushes on fringed carpets.

• The machines have been designed compactly with the mass production model and manufacturing and workmanship errors have been reduced to the level of the automotive industry.

• Minimum failure level

Manufacturing according to the principle of working in the most severe conditions.

• Maximum output level with low energy and water consumption.

• Optionally, it can be produced as chrome, galvanized or epoxy oven painted.

• 4,20 Belt width - Compact endless conveyor belt

• Total Number of Brushes: 10 pieces

• Voltage: 380-50 / V-Hz

• Brush Motor Power: 1.1 KW

• Brushing units: 8 Disc Brushes, 2 Roller Brushes

• Total Power: 18 KW

• Disc Brushes Motor Speed: 1400 rpm

• Brush Cycle: 200 rpm

• Brush Diameter: 420 mm

• 1000 square meters of carpet cleaning in 8 hours

• A carpet of 6 square meters can be washed in an average of 3 minutes.

• Carpet washing speed 1m/min per minute

• Electricity Consumption in 1 Hour: 11 KWh

• LxWxH: 2400 x 5080 x 1900 mm
